With the Chemtrap Midcap filtration system, you can avoid to duct out your chemicals storage cabinets, install them anywhere you want as it just needs an electrical socket to vent the cabinet 24 hours and filter 100% of the noxious chemicals from chemical containers placed inside. You will save an average of 1,700,000 m3 of expensive aircon air per cabinet and per year if the cabinet was ducted out.
With the Chemtrap Midcap, the installation is quick, unlike the complicated ducted systems: just place it on the top of your cabinet, connect the stainless steel tube between the exhaust port of the cabinet and the inlet port of the Chemtrap, plug-in to an electrical socket and that's done!
Contact Us Now
| Model description | Chemtrap H402 Midcap |
|---|---|
| External width (mm / in) | 482 / 19 |
| External depth (mm / in) | 451 / 17 3⁄4 |
| External height (mm / in) | 315 / 12 1⁄2 |
| Air flow (m³/h - CFM) | 45 m³/h |
| Safety Standards | Filtration performances tested according to the AFNOR NF X 15-211:2009 standard : France EN 1822: 1998 (HEPA H14 & ULPA U17 Filters) – CE Marking |
| Voltage / Frequency (V/Hz) | 100–240V / 50–60Hz |
| Power consumption (Watts) | 19 |
| Connection pipe | Adjustable stainless steel connection pipe Ø 61 mm (2" in.) |
As the world leader with 50 years of expertise in the filtration of chemicals, Erlab guarantees 100% filtration efficiency during all the lifetime of the filters!

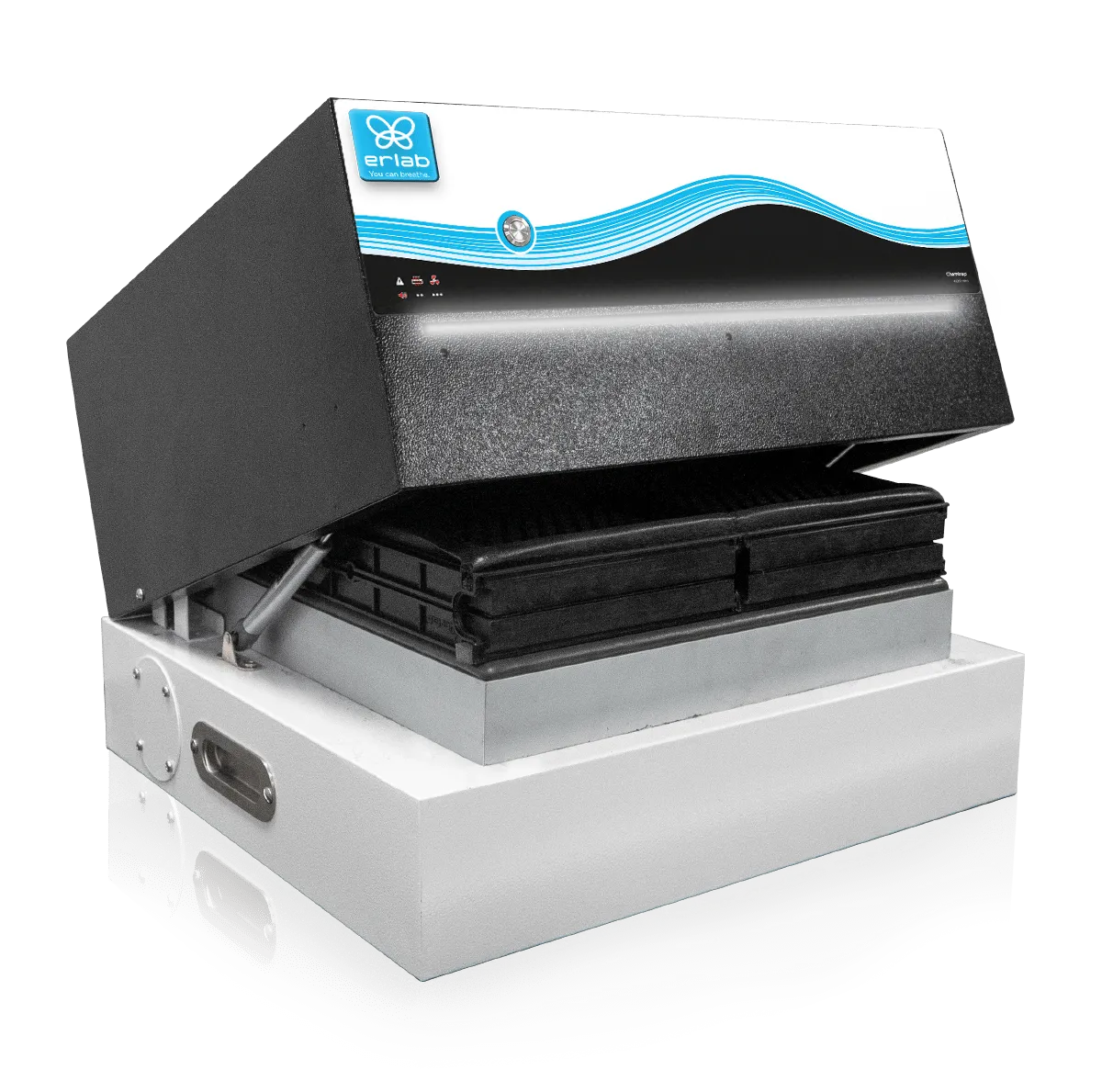

Open the filter housing is easy with the help of telescopic arms. Extraction and placement of the filter from front.
Carbon filter only for Chemical vapors, or carbon filter+ HEPA for chemical vapors and powders.
Compatible with fireproof and other chemical storage cabinets
Adjustable connection pipe 0 61 mm (2112 in.) between the Chemtrap Midcap and the storage cabinet.
